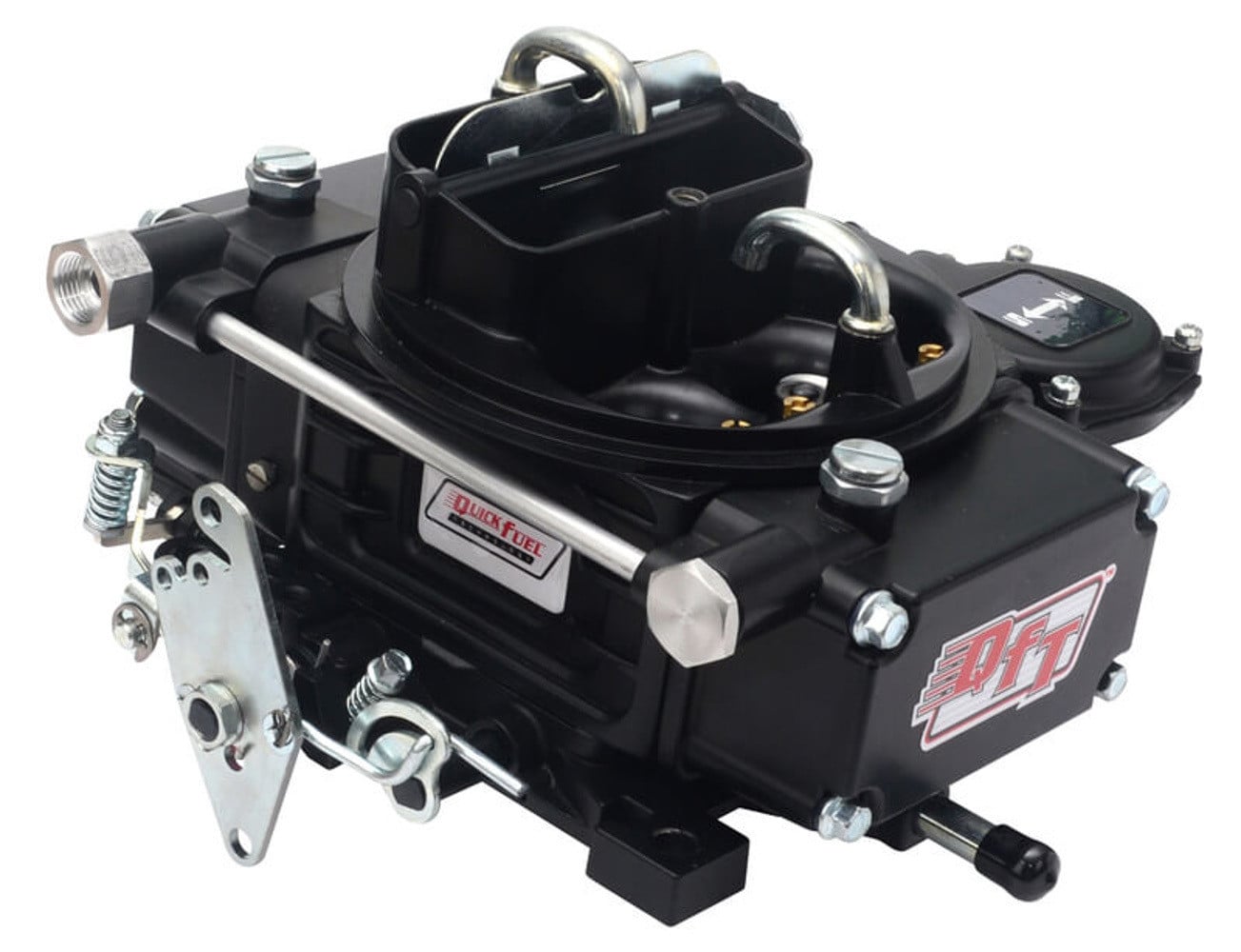

Quick Fuel Technology® - M-Series 600CFM Marine Carburetor

Quick Fuel Technology® M-600 - M-Series 600CFM Marine Carburetor

0 reviews|Item # mpn5250321859

Notes:

This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932
This is a Race Only product that is to be used solely for competition. It cannot be used on vehicles that are operated on public streets, roads or highways. Its use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization. Any other use, including recreational off-road use, could be in violation of local, state and federal laws. Shipping Restriction: CA, NY, ME

Authorized Dealer

$749.95

In Stock (7)

Have a Question? Ask a Specialist

888-453-5144Live Chat

Specifications

Barrel Quantity	4
Barrels	4
Billet Color	Diecast-No Billet
Booster	Down Leg
Brand	Quick Fuel Technology
Carburetor Use	Marine
Category	Air and Fuel Delivery
CFM	600
Choke	Electric
Choke Type	Electric
Circuit	2
Condition	New
Cubic Feet Per Minute Rating	600
Emission Code	3
Finish	Black
Flange Type	Square/4150
Fuel	Gasoline
Fuel System	Carbureted
Gasket Or Seal Included	Yes
Grade Type	Performance
High Speed Air Bleed	28
Idle Air Bleed Size	73;39
Linkage Attached	Yes
Marine Engine Size	Universal
Marine Use	Yes
Material	Aluminum
Model	4160
Part Type	Carburetor
Primary Main Jet	67
Primary Power Valve	65
Primary Pump Nozzle Size	35
Product Type	Quick Fuel Marine Carburetor
Secondaries	Vacuum
Secondary Main Jet	76
Sub Category	Carburetion
Supercharged Application	No
Throttle Bore	1-9/16 inch
Warranty	Manufacturer's Limited 90 Day Warranty
UPC	849804015212
Part Number	M-600

Features

Exclusive Black Diamond coating for enhanced corrosion protection and appearance, coating provides a 6% reduction in fuel temperature
Electric choke - Fully adjustable, one wire hookup
J tubes to prevent spillage
PTFE-coated throttle shafts with PTFE bearing ribbons and stainless steel plates
Built-in sight glass windows for easy float adjustment
Changeable primary idle feed and power valve channel restrictions, plus changeable idle air and high speed bleeds
QuickLink™ secondary adjustment for fast and easy changing of opening rates
Available in eight different sizes from 350-1,050 cfm

Product Details

M-Series 600CFM Marine Carburetor by Quick Fuel Technology®. 600 CFM - 4160 - Vacuum Secondaries - Black - Gasoline. QFT brings its engineering expertise to the marine market. The M-Series feature billet-style metering blocks and throttle bodies for more precise performance and exceptional strength.

Quick Fuel Technology Authorized Dealer

Brand:

Quick Fuel Technology

Part Number:

M-600

UPC:

849804015212

Alternate MPN:

M600

Warranty

LIMITED WARRANTY (All Products)

Quick Fuel Technology, Inc. ("QFT") warrants to the original purchaser only that its new and remanufactured products shall be free from defects in material and workmanship for a period of 90 days from date of purchase, except for certain fuel pumps which are covered by such limited warranty for one year from date of purchase. In the event of a defect in material or workmanship, Quick Fuel Technology, Inc. will, at its option, repair or replace the product, or any defective part or parts thereof, without charge to the original purchaser.

This warranty does not apply to products that have been modified or altered, subjected to misuse, neglect, accident, improper installation or adjustment, dirt or other contaminants, water, corrosion, faulty repair or used in other than those applications recommended in the current Quick Fuel Technology, Inc. catalog or on the website. Purchaser's remedies under this Limited Warranty are strictly limited to the repair or replacement of the defective product or parts. QFT shall not be responsible for any actual or alleged labor, transportation, shipping or other incidental charges or actual or alleged consequential or other damages incurred due to an alleged defect under this warranty. In no event shall QFT's maximum liability under this Limited Warranty exceed the original cost of the alleged defective product to the consumer.

This warranty is exclusive and in lieu of all others, oral or written, and express or implied. Any implied warranties, including implied warranties of merchantability and fitness for a specific purpose, are hereby disclaimed. Some states do not allow limitations on how long a warranty lasts or the exclusion of limitations of incidental or consequential damages, so the above limitations and exclusions may not apply to you. This Warranty gives you specific legal rights and you may also have other rights which vary under state or provincial laws. This Limited Warranty supersedes all prior warranty statements.

LIMITED WARRANTY

Quick Fuel Technology, Inc. ("QFT") warrants to the original purchaser only that fuel pump products shall be free from defects in material and workmanship for a period of one (1) year from date of purchase. In the event of a defect in material or workmanship, Quick Fuel Technology, Inc. will, at its option, repair or replace the product, or any defective part or parts thereof, without charge to the original purchaser.
