Product Details
DepthTrax™ 1H Handheld Depth Finder by HawkEye®. The DepthTrax 1H was designed with the sole purpose of being the most powerful and durable handheld sonar device ever created. Utilizing HawkEye’s proprietary DepthTrax Sonar Technology, the DepthTrax 1H emits 300 watt sonar pulses, 4 times per second, while algorithmic programming virtually eliminates false readings from being displayed on the LCD. When it came time to design the housing, our design team aimed for unbreakable. Not only does DepthTrax 1H utilize ultra-tough ABS Plastic for its outer shell, but it also incorporates Inductive Switching Technology (IST). IST employs a series of magnets to manage user commands, which allowed the housing of the DepthTrax 1H to be designed with no switch holes. Couple this with dual seals on both the battery and transducer caps, and the DepthTrax 1H is IPX-8 waterproof to depths up to 200'.
Notes
- Battery not included.
Specifications
| Dimensions: 2" x 2" x 8" (51 x 51 x 203 mm) |
| Display Window Size: 1.65" x .87" (42 x 22 mm) |
| Display Type: Polarized Liquid Crystal Icon |
| Display Backlighting: Silver HID |
| Battery Requirement: 9-Volt (not included) |
| Battery Life: 25 Hours |
| Waterproofing: IPX-8 to 200' (60 m) |
| Operating Temperature: 14~160°F (-10~71 °c) |
| Units of Measure: Feet or Meters |
| Depth Range - Max: 300' (90 m) |
| Depth Range - Min: 2.5' (.7 m) |
| Depth Readout Increments: 1/10th ft/m |
| Transducer: Internal Ceramic |
| Transducer Frequency: 200 kHz |
| Transducer Beam Angle: 14 Degrees |
| Temperature Readings: Water or Air |
Includes
- DT1H Handheld Depth Sounder
- Lanyard Style Wrist Strap
Features
- Engineered to high standards
- High-grade design delivers extended lifespan
- Made with premium materials
Shorelines & Docks: Aim the sonar from any shoreline - river banks, creek banks, pond banks, lake banks, etc.
Dock, Jetty, Pier: Use the Manual Mode to suspend the depth finder from docks, jetties and piers.
Float Tube, Kayak, Canoe: Use the Automatic or Manual Modes from float tubes, kayaks or canoes. Or set inside the hull and shoot through the hull for depth and fish readings.

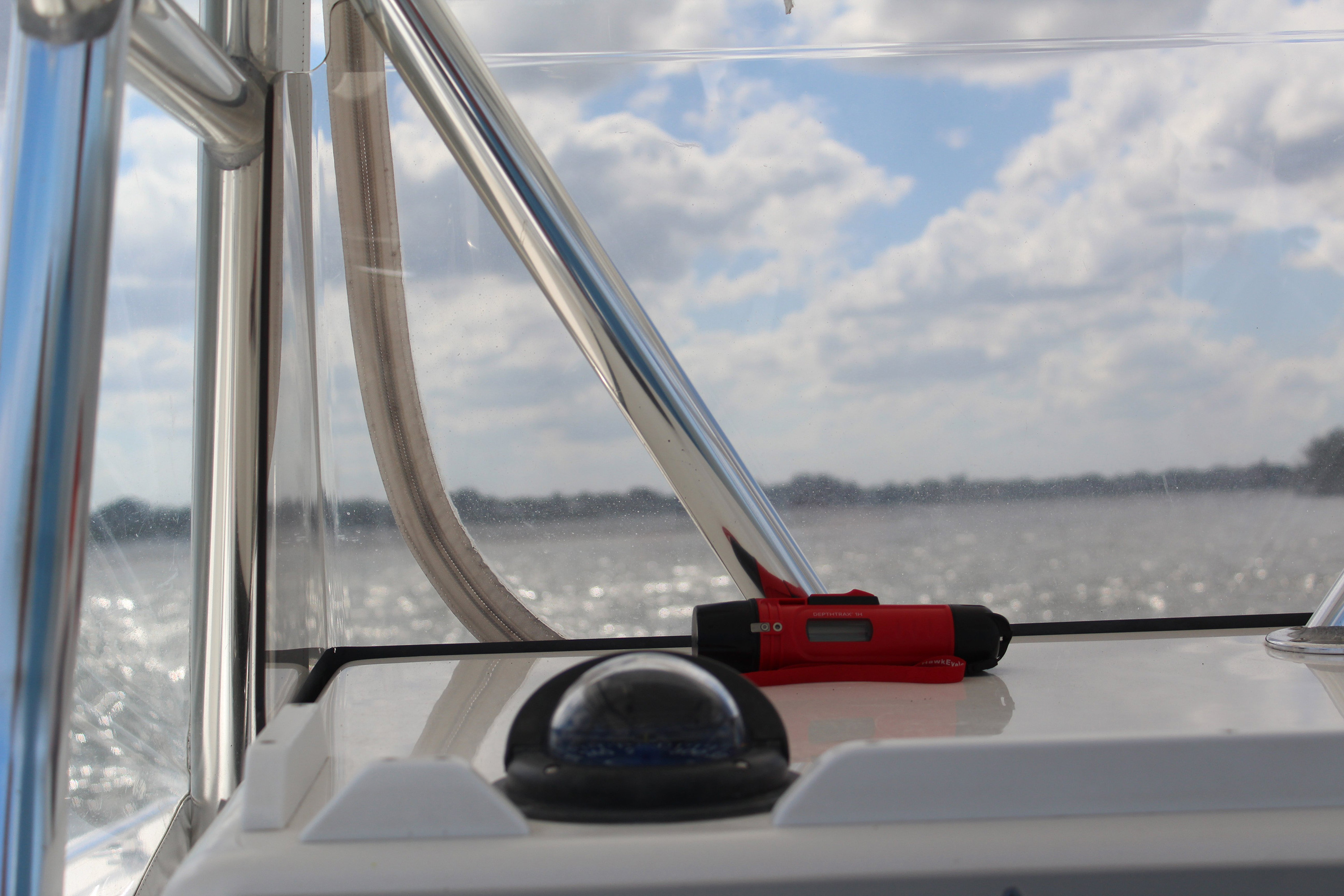

Boat, Raft, Tender, Dingy: Use the Automatic or Manual Modes from boats, rafts, tenders and dingies. Or set inside the hull and shoot through the hull for depth readings.
PWC: A perfect primary depth finder for your PWC.
Ice Fishing: Shoot through the ice before drilling your hole to check the depth or see if there are fish. Suspend in the hole while fishing to keep on eye out for passing fish.
HawkEye® Electronics provide technically advanced, yet economical, solutions for your boating and fishing lifestyle. The HawkEye sonar products range from digital depth sounders, to fish finders, and integrated OEM solutions. The patented fish scales and temperature meters go where no other product line has dared venture. These reliable, easy-to-use, world-class products are backed with award-winning warranties and technical support, setting the standard for excellence in the boating and fishing industries.
