Specifications
| Weight per frame | |
|---|---|
| Frame Height | |
| Frame Weight Capacity | |
| Frame Material | |
| Frame Style | |
| Frame Build | |
| Support Span | |
| Bracket Material | |
| Bracket Adjustment Style | |
| Pipe Material | |
| Pipe Size | |
| Pipe Weight Capacity | |
| Decking Panel Measurements | |
| Cedar Panel Weight | |
| Cedar Details | |
| Poly Panel Weight | |
| Poly Details | |
| Aluminum Panel Weight | |
| Aluminum Details | |
| Wheel Material | |
| Wheel Diameter | |
| Hardware material | |
| Hardware size | |
| Additional Info |
Features

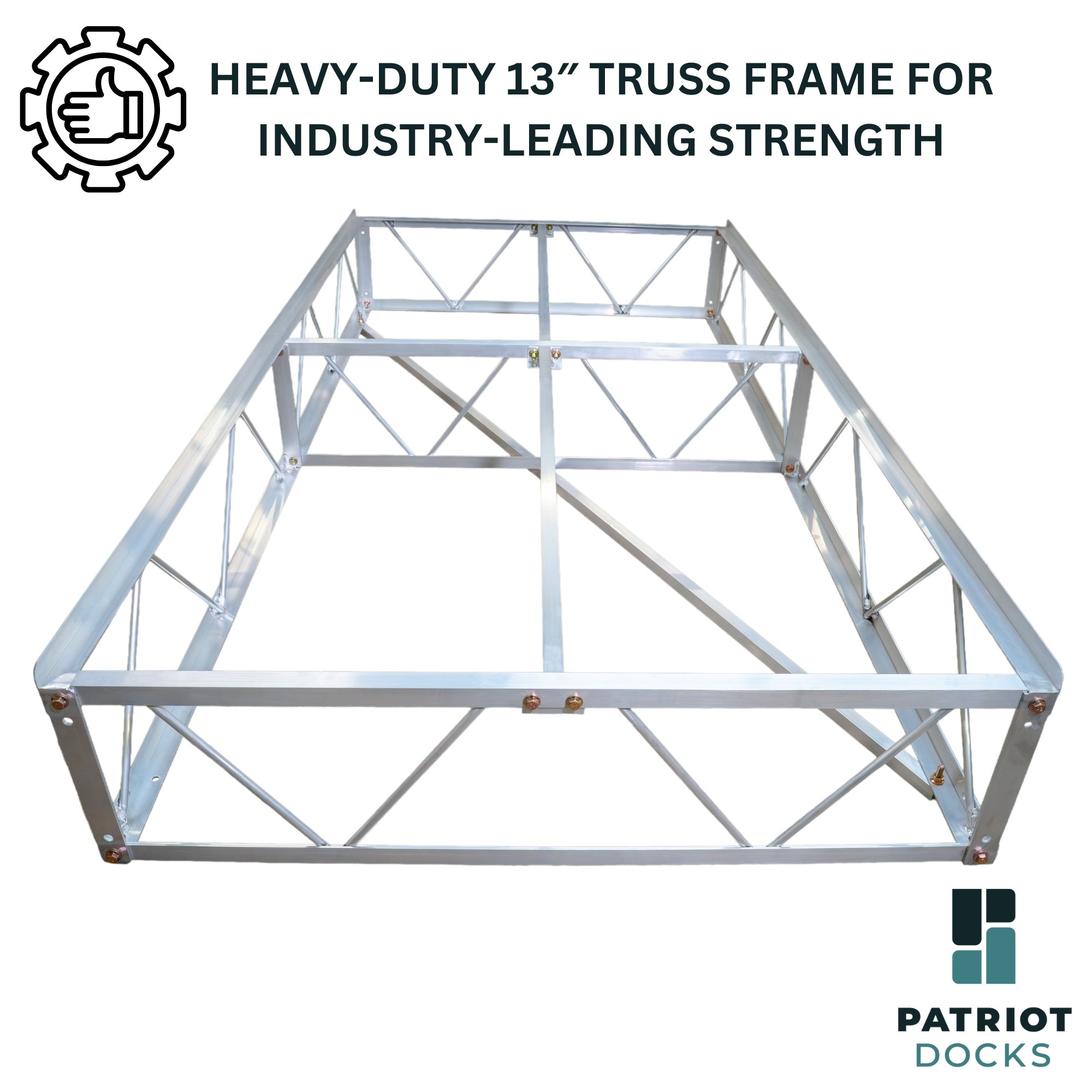

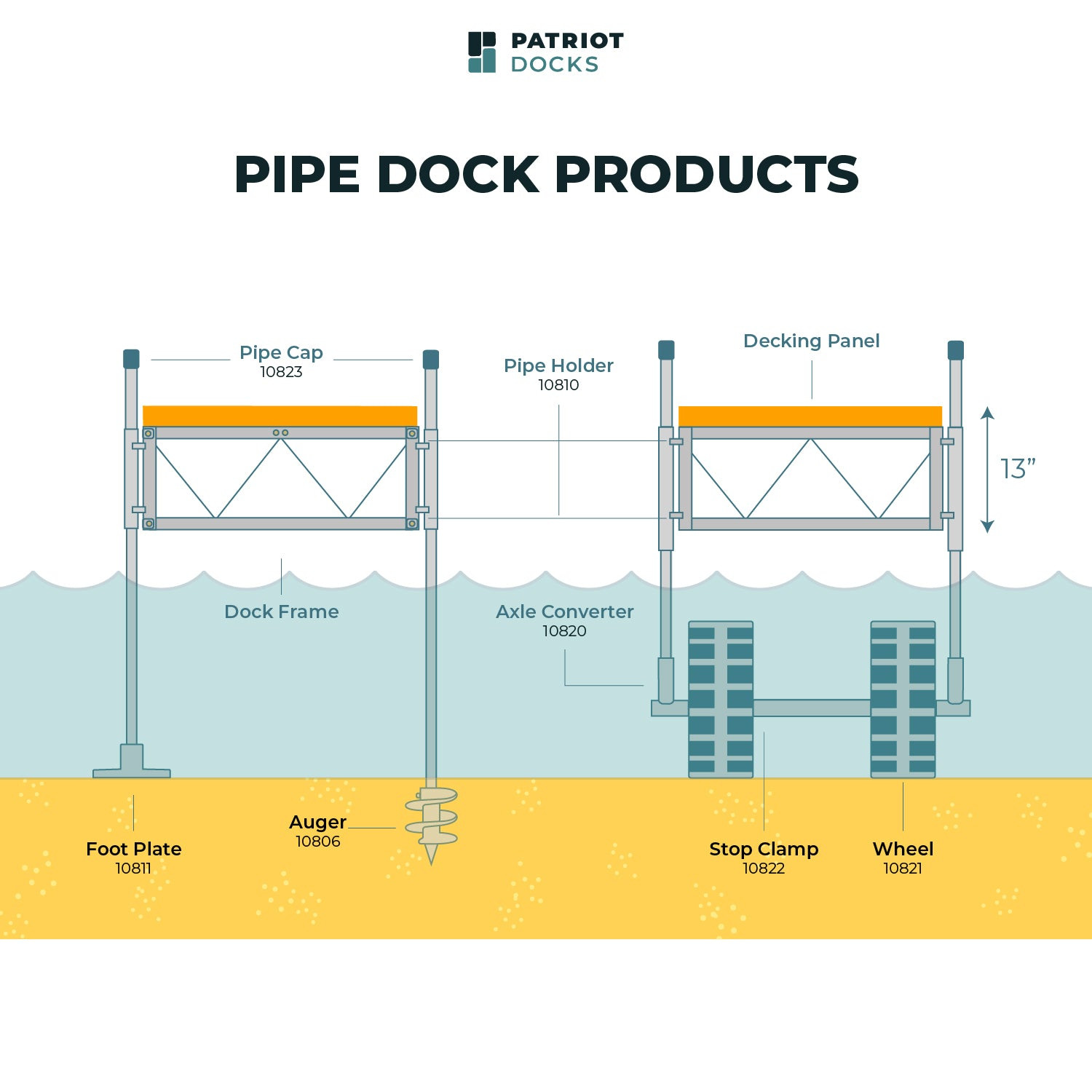

- DOCK FRAMES: Lightweight (45lbs); Strong truss (13" tall, 5" taller than industry average); No-rust aluminum; Modular (bolt together assembly); Nests decking (frames in drop-in decking panels)

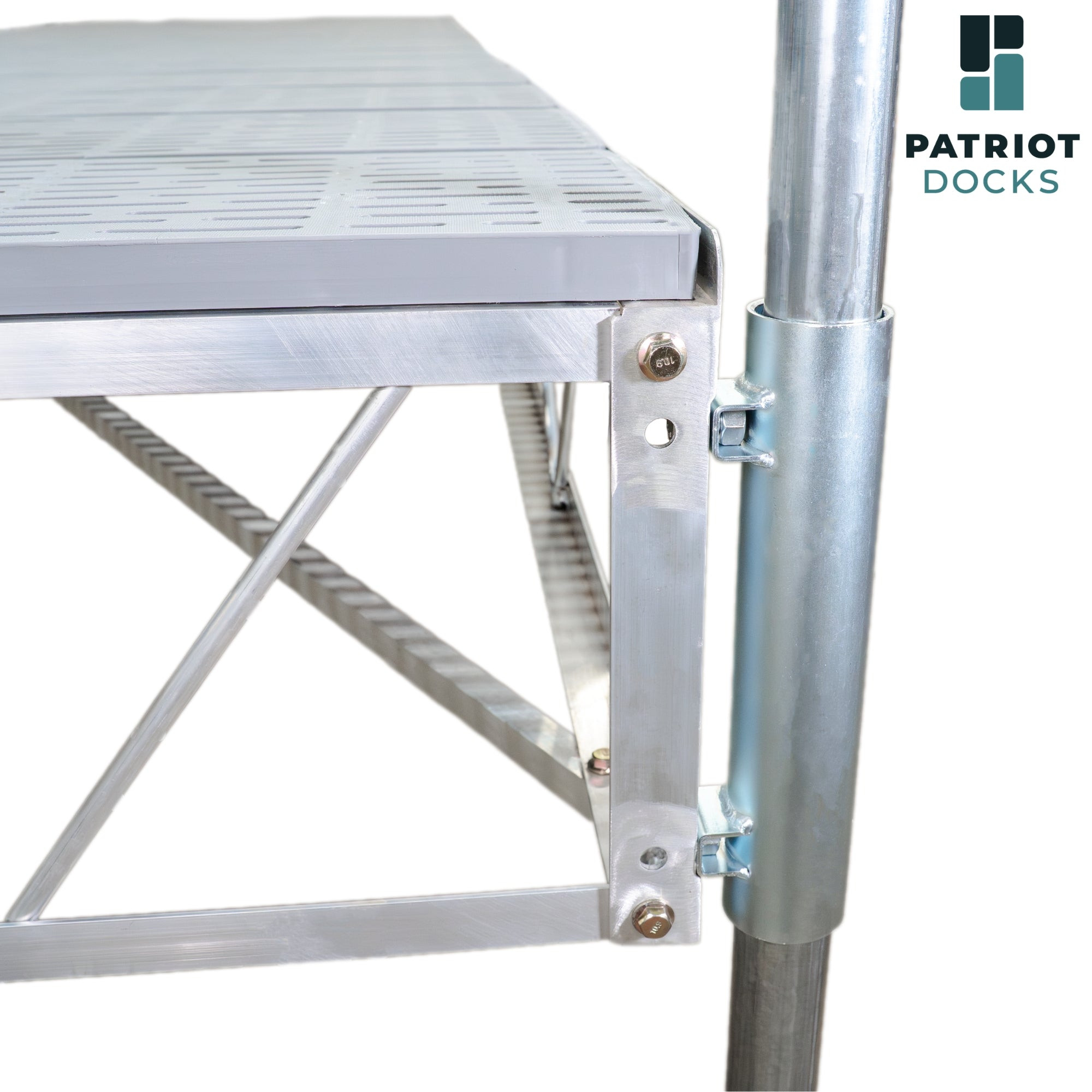

- PIPE SUPPORTS: Strong galvanized steel pipes; Dual set bolt locking for safety; Projects above dock for handle support or solar lighting; Fully manually adjustable; Protective pipe cap; Large foot pad

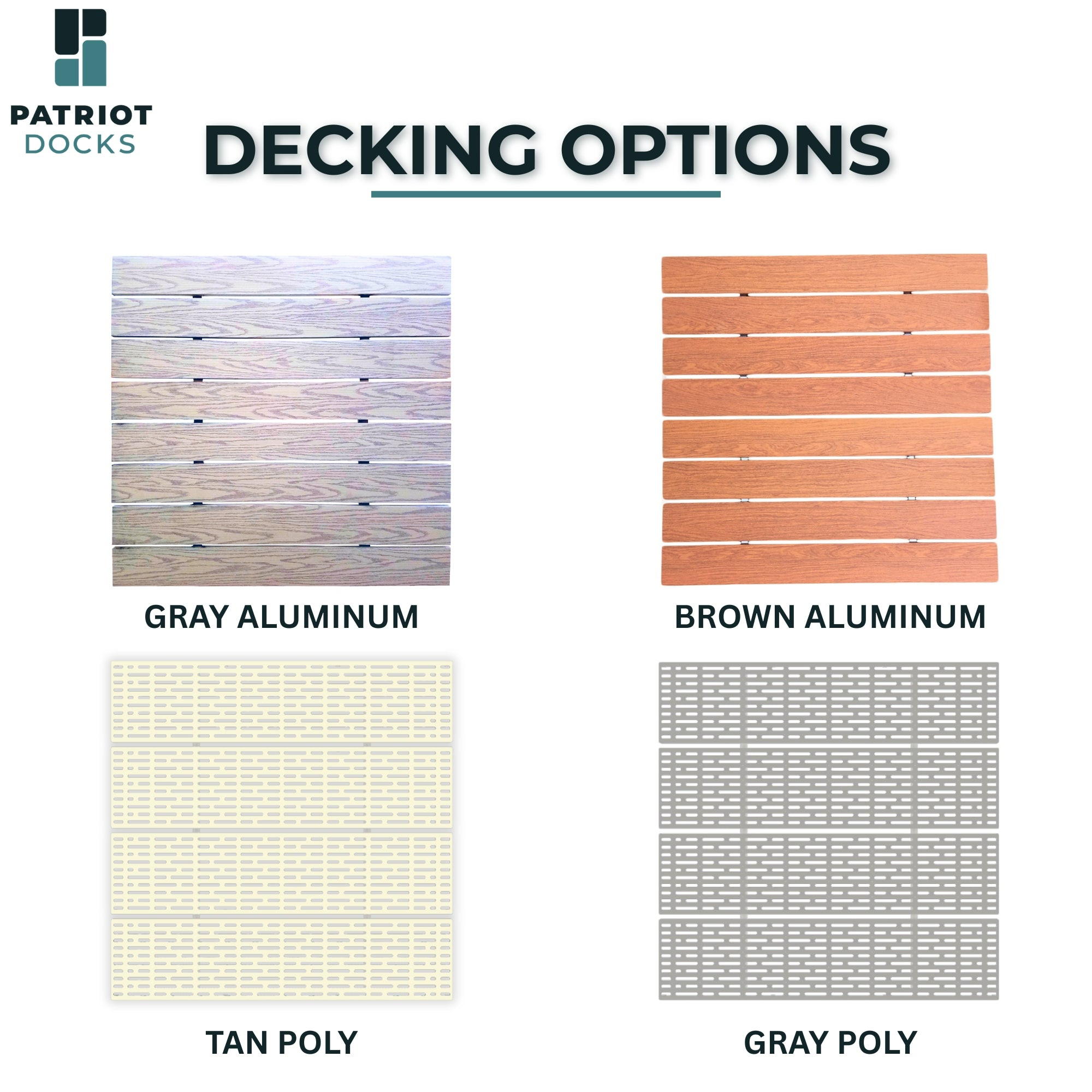

- DECKING: 4x4 Panels; Premium material options (Cedar, Poly, Aluminum); Drops into frame

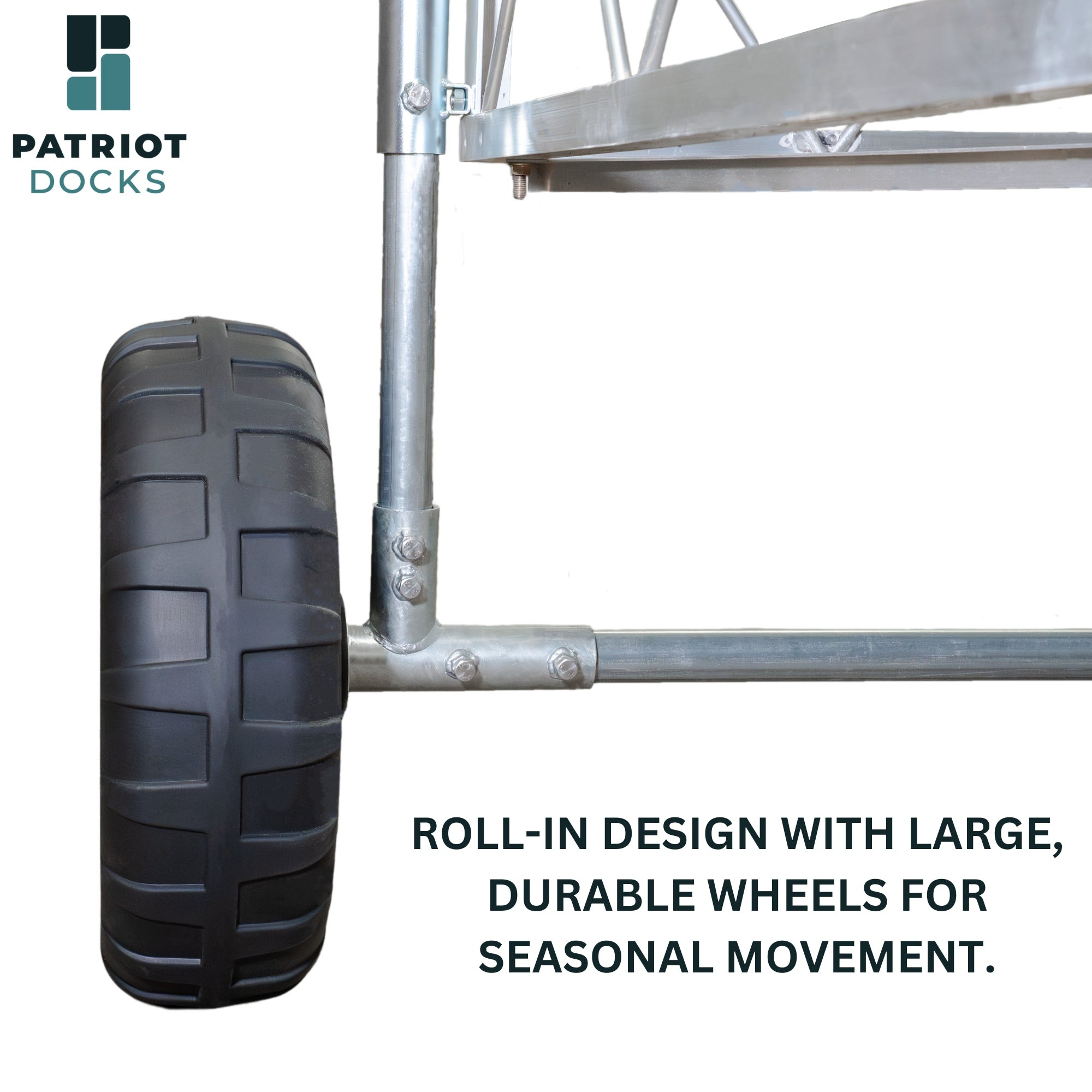

- WHEELS: Heavy duty polypropylene; 24" All-terrain; Sinks and fills with water for stability; Wide 8-inch tread; Moveable to middle or end of dock; Strong full axle
- DETAILS: Ships to most commercial and residential addresses; Complete kit including hardware; Comes with instruction video and step-by-step PDF
Product Details

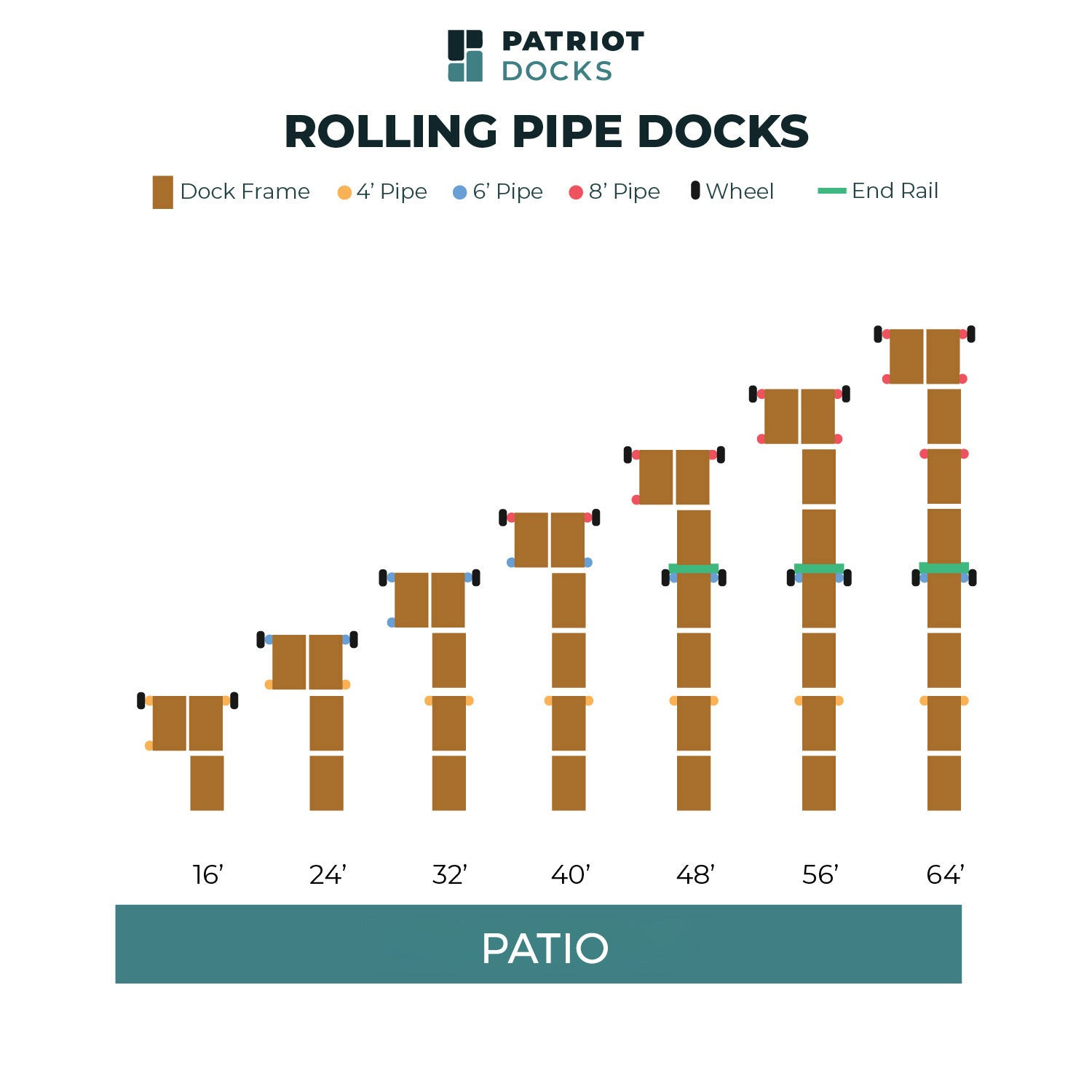

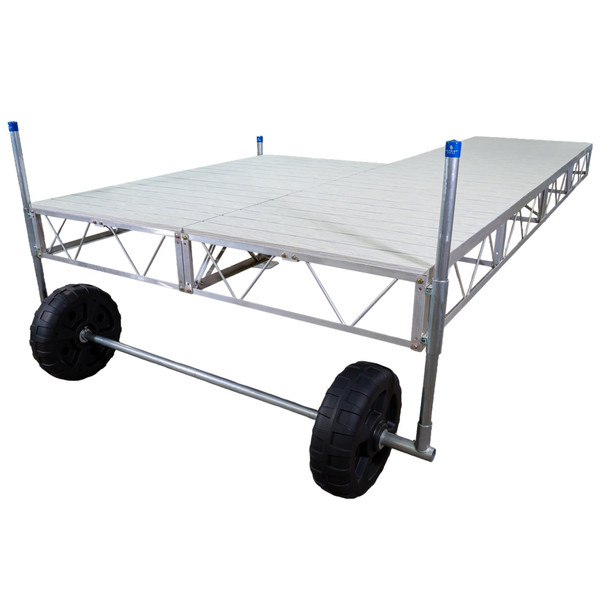

Patio Roll-In Pipe Dock (D-11224) by Patriot Docks®. 16'. With Gray Aluminum Decking. Patriot Docks delivers strength, space, and simplicity with the Patio Roll-In Pipe Dock. This popular configuration includes a side-mounted patio platform-perfect for seating, lounging, docking, or just spreading out on the water. Whether you're entertaining guests or parking multiple watercraft, the patio setup adds usable dock space where you need it most. Engineered for serious performance, Patriot Docks feature the tallest aluminum truss frames on the residential market. At 13" tall, these frames provide outstanding rigidity and build trust in challenging conditions, from soft lake bottoms to deeper, rougher waters.
