Patriot Docks® R-2122 - Gangway

0 reviews|Item # mpn5287204205
Authorized Dealer
$1,496.73
In Stock (25) - Ships in 24 to 48 hrs
See similar products
Have a Question? Ask a Specialist
888-453-5144Live Chat

Specifications

Weight per frame
45 pounds
Frame Height
4 inches
Frame Weight Capacity
45 PSF when constructed as specified
Frame Material
Aluminum (Marine Grade 6061-T6)

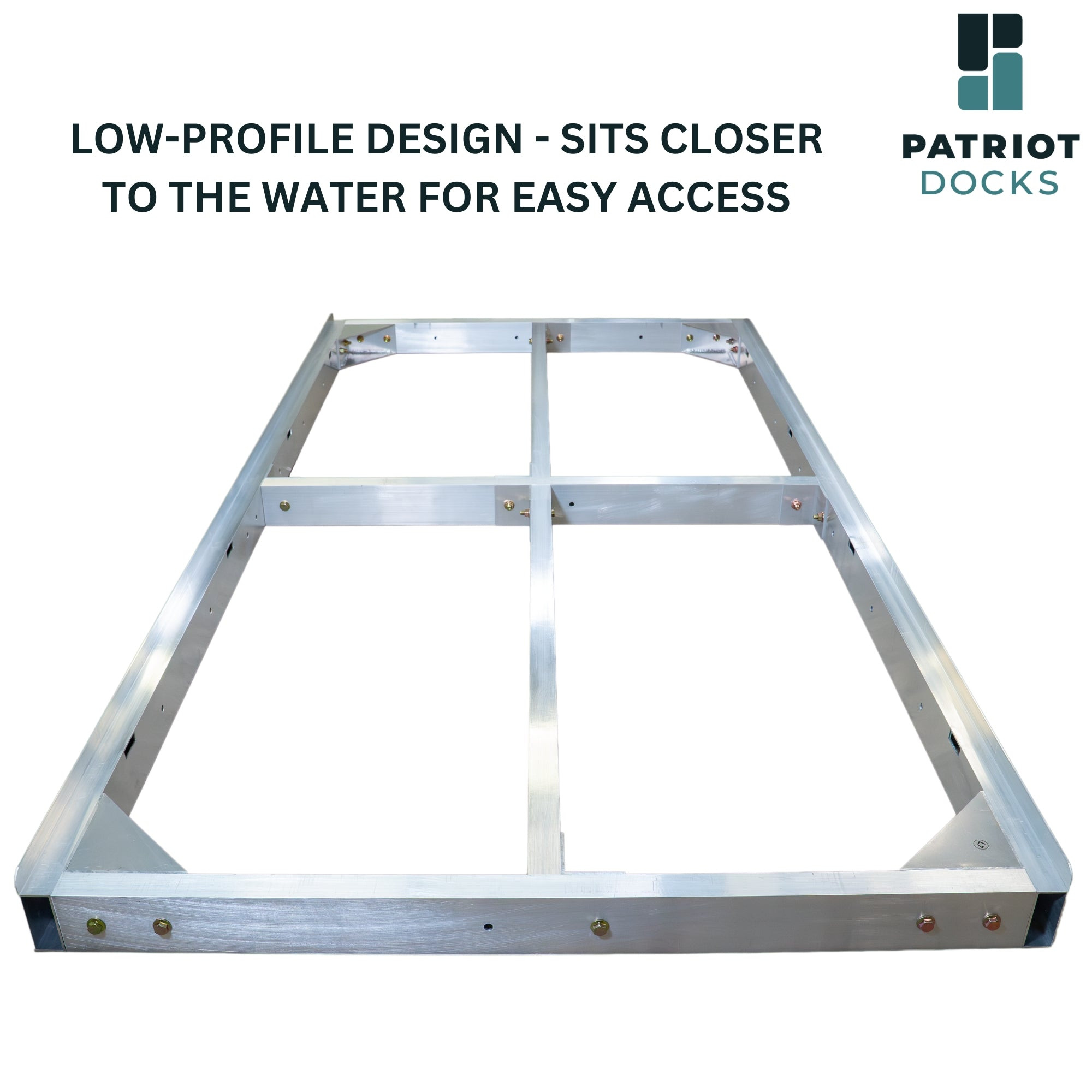

Frame Style
Low Profile
Frame Build
Bolted
Decking Panel Measurements
48x48x1 inches
Cedar Panel Weight
37 pounds
Cedar Details
Unfinished Premium Western Red Cedar 48x6x1 inch Boards with Stringers
Poly Panel Weight
30 pounds
Poly Details
Four 48x12x1 inch Polypropylene Panels with Aluminum Reinforcements and Stringers
Aluminum Panel Weight
25 pounds
Aluminum Details
Premium 48x6x1 inch Extruded Aluminum Boards with Screwed Stringers, Powder Coating, and Wood Grain Finish
Mount Type
Hinge Mounting
Hinge Material
Aluminum
Hinge Dimensions
48x1 inches
Articulation Range for 8ft Gangways to Low-Profile Docks
92″ up (74°) and 48″ down (31°) from Dock Surface
Articulation Range for 16ft Gangways to Low-Profile Docks
184″ up (74°) and 98″ down (31°) from Dock Surface
Articulation Range for 8ft Gangways to Truss Docks
88″ up (73°) and 48″ down (32°) from Dock Surface
Articulation Range for 16ft Gangways to Truss Docks
176″ up (73°) and 98″ down (32°) from Dock Surface
Handrail Material
Aluminum
Handrail Diameter
1-7/8″ OD
Hardware material
Grade 8 Zinc-plated
Hardware size
3/8″ or 1/2″

Features

  • Time-Tested Durability
  • Built for the self-made
  • Affordable and enduring

Product Details

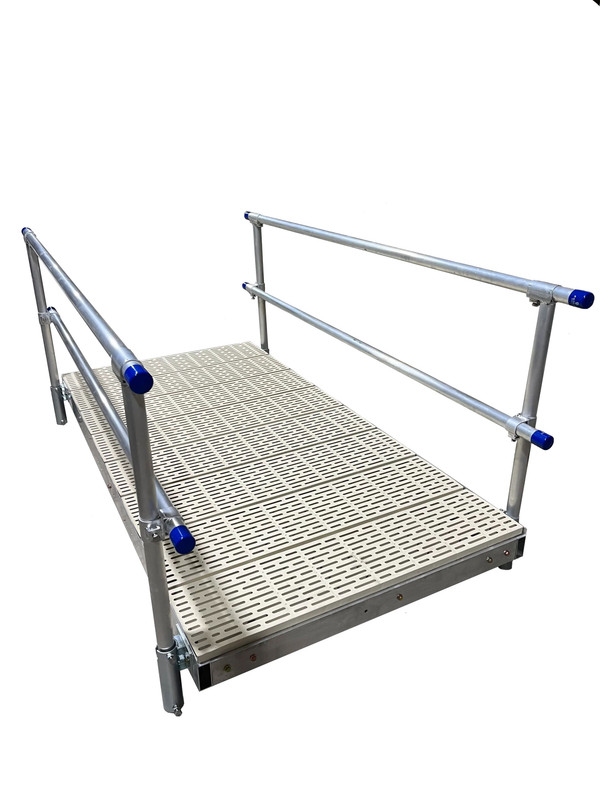

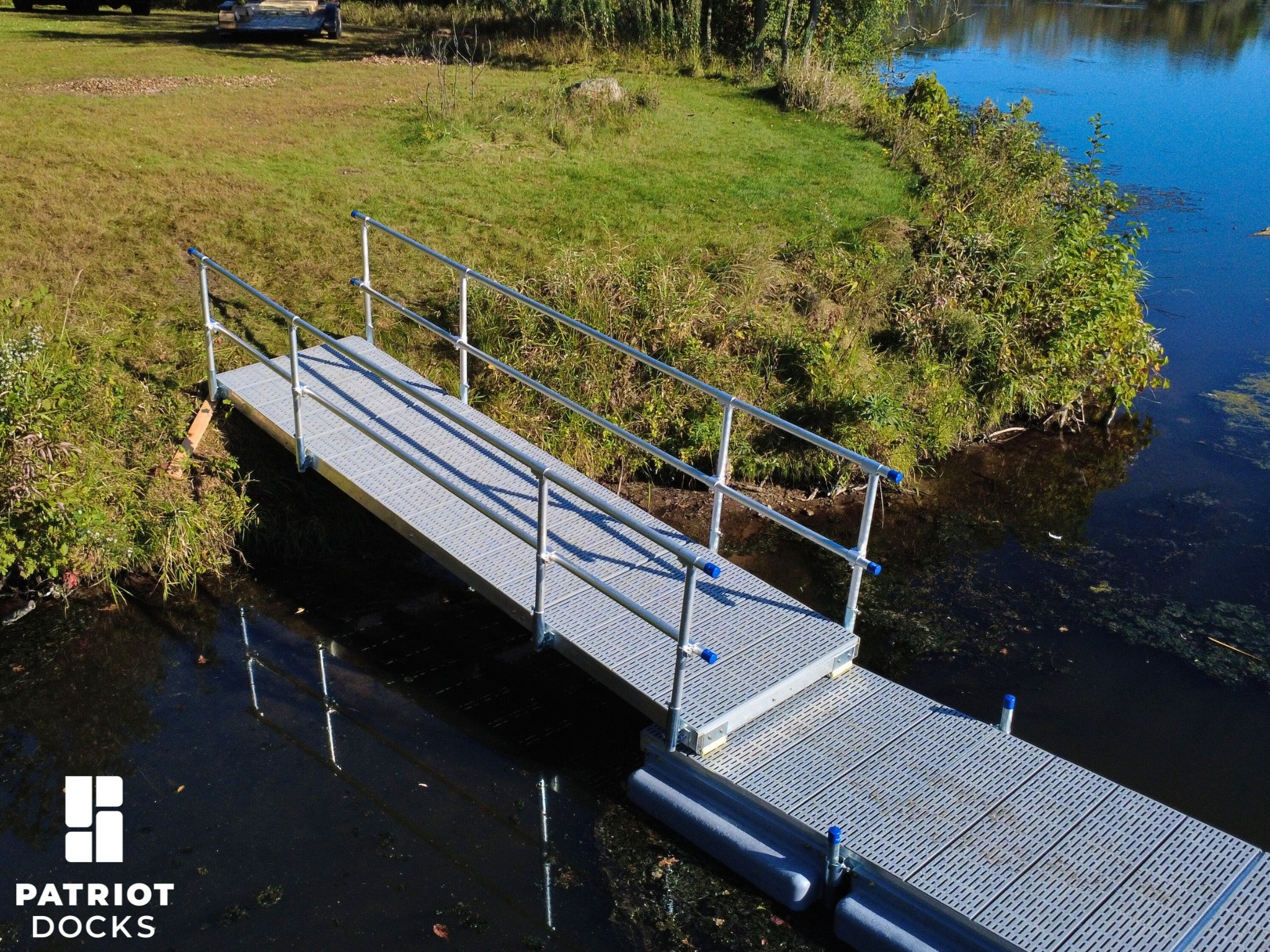

Gangway (R-2122) by Patriot Docks®. 4'x8'. With Tan Poly Deck. The Patriot Docks Aluminum Dock Gangway Kit provides a safe, sloped transition between your shoreline and floating dock-ideal for waterfronts with fluctuating water levels or sloped terrain. Built with a durable marine-grade aluminum frame, this gangway features a pivoting hinge system that adjusts with your dock, creating a smooth and reliable connection that adapts to changing environments.

Patriot Docks Authorized Dealer
Brand:
Patriot Docks
Part Number:
R-2122
UPC:
830043002675
Alternate MPN:
R2122
