Product Details

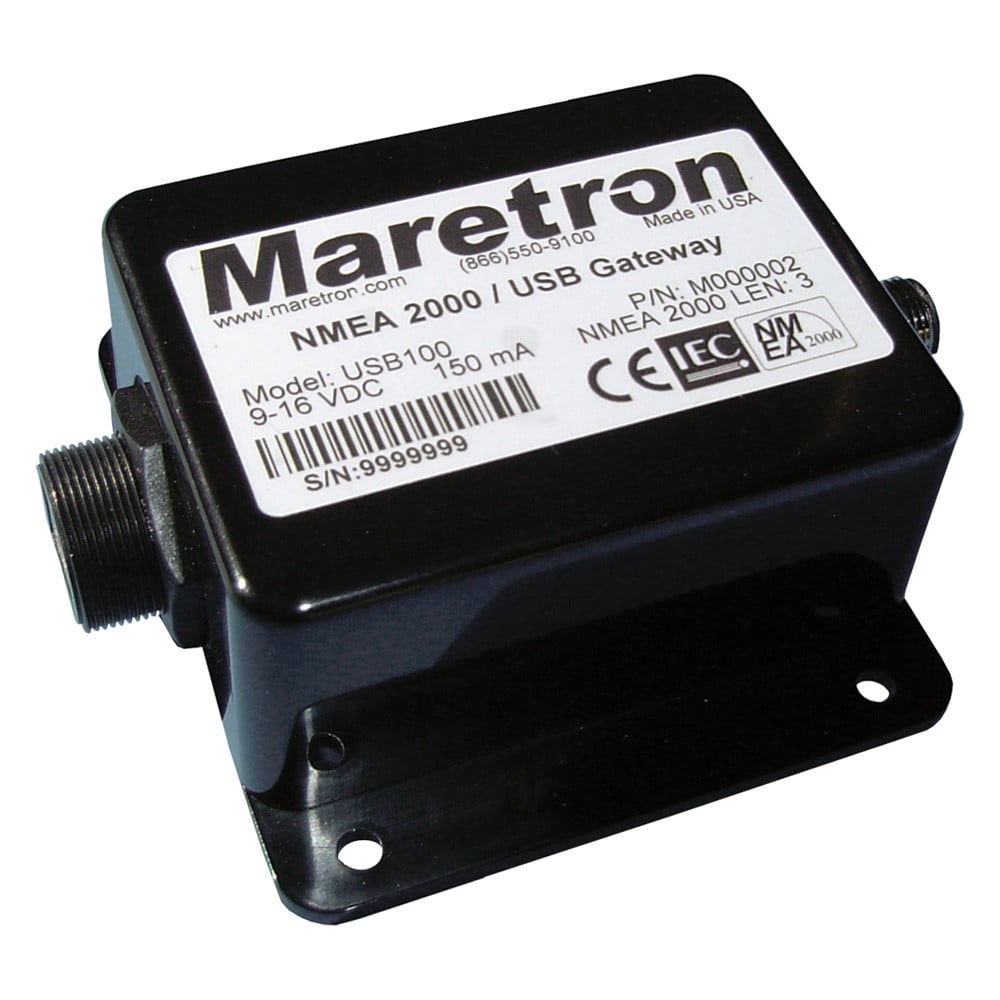

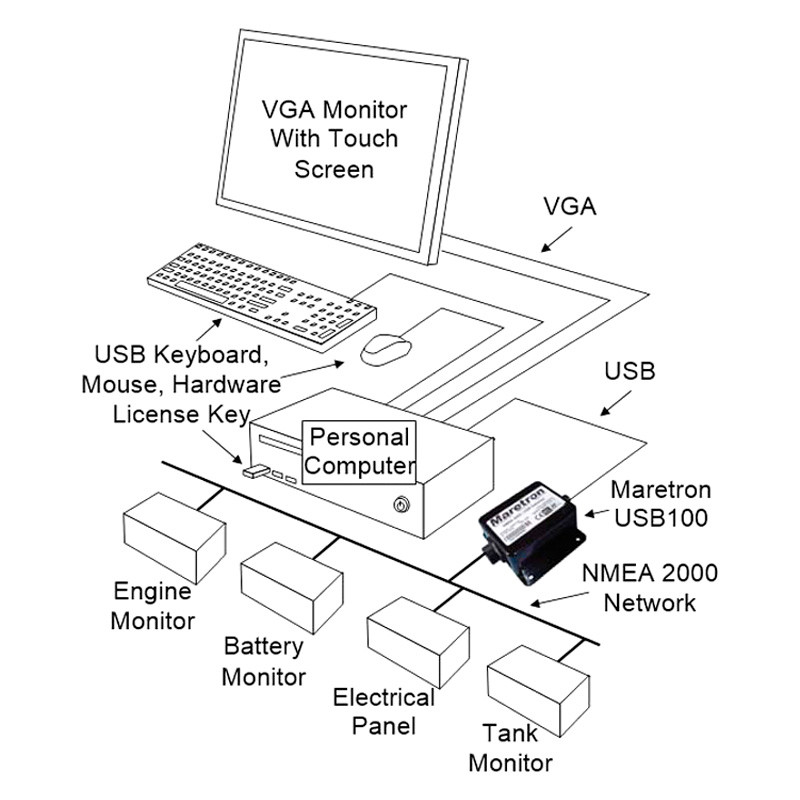

USB100 NMEA2000 to USB Gateway by Maretron®. Maretron’s USB100 is a gateway for bridging computers to an NMEA network. This allows you to use PC based vessel monitoring and control software like Maretron’s N2KView® or PC based navigation software. The gateway provides one simple connection between the network and the PC, which eliminates conventional multiplexers and the maze of wires usually associated with inter-facing equipment to PCs.For older PC based navigation software that requires receiving data in NMEA 0183 format, the USB100 automatically converts information from the NMEA 2000® network to NMEA 0183 sentences. You can continue benefiting from navigational and charting software that you already own while enjoying the many benefits of networked NMEA 2000® instruments. Maretron’s USB100 gateway is also used together with Maretron’s N2KAnalyzer® software, which allows you to use a PC for configuring, updating, and trou-bleshooting products connected to an NMEA 2000® network. You can even save all of the vessel’s product configurations and easily restore them if a product needs to be replaced.
Specifications
| NMEA 2000® Connector: DeviceNet Micro-C, Industry Standard Waterproof |
| NMEA 2000® / USB Isolation: Opto-Isolated, No Electrical Connection Across Bridge |
| USB Standard: USB 1.1 |
| USB Connector: USB Type B, Industry Standard Waterproof |
| USB Supported Signals: D+, D-, +5V, GND, Bi-directional Gateway |
| USB Auxiliary Power: +5 Volts < 50mA |
| USB Baud Rate: Up to 12 Mb/s, Full Speed USB Data Rate |
| USB Interface Modes: NMEA 0183 With Maretron-Supplied Windows® Drivers; Native NMEA 2000® For Use With N2KView® and N2KAnalyzer |
| Supported Operating Systems: Windows XP, Vista, 7, 8 and 10 |
| Battery Monitor: Voltage, Current, Temperature |
| Compass: Vessel Heading, Attitude, Rate of Turn |
| Depth: Water Depth, Transducer Offset |
| Engine: Standard Sentences: RPM. Proprietary Sentences: Boost Pressure, Tilt/Trim,Oil Pressure, Oil Temperature, Coolant Temperature, Alternator Potential, Fuel Rate, Total Engine Hours, Coolant Pressure, Fuel Pressure |
| GPS: COG, SOG, DOP, Position, Satellites, Time, Date |
| Rudder Indicator: Rudder Position |
| Speed: Distance Log, Speed |
| Weather Station: Water Temperature |
| Wind: Wind Direction and Speed |
| Operating Voltage: 9 to 16 Volts DC Voltage |
| Power Consumption: < 150mA, Average Current Drain |
| Load Equivalence Number (LEN): 3 NMEA 2000® Spec. (1LEN = 50mA) |
| Reverse Battery Protection: Yes, Indefinitely |
| Load Dump Protection: Yes, Energy Rated per SAE J1113 |
| Size: 3.11" x 3.46" x 1.38" (79mm x 88mm x 35mm), Including Flanges for Mounting |
| Weight: 8 oz. (227 g) |
| IEC 60945 Classification: Exposed |
| Degree of Protection: IP67 |
| Operating Temperature: -25°C to 55°C |
| Storage Temperature: -40°C to 70°C |
| Relative Humidity: 93%RH @40° per IEC60945-8.2 |
| Vibration: 2-13.2Hz @ ±1mm, 13.2-100Hz @ 7m/s2 per IEC 60945-8 |
| Rain and Spray: 12.5mm Nozzle @ 100liters/min from 3m for 30min per IEC 60945-8.8 |
| Solar Radiation: Ultraviolet B, A, Visible, and Infrared per IEC 60945-8.10 |
| Corrosion (Salt Mist)4 times 7 days @ 40°C, 95%RH after 2 hour Salt Spray Per IEC 60945-8.12 |
| Electromagnetic Immunity: Conducted, Radiated, Supply, and ESD per IEC 60945-10 |
| Safety Precautions: Dangerous Voltage, Electromagnetic Radio Frequency per IEC 60945-12 |
| NMEA 2000® Standard: Level A |
| Maritime Navigation and Radio Communication Equipment & Systems: IEC 61162-3 |
| Maritime Navigation and Radio Communication Equipment & Systems: IEC 60945 |
| FCC and CE Mark: Electromagnetic Compatibility |
Features
- Engineered to high standards
- High-grade design delivers extended lifespan
- Made with premium materials
Boating is a great way to relieve stress and leave all your troubles on land. Enjoy your time out on the water even more with this top-notch marine product. Whether you are practicing your casts, exploring the amazing marine life with a snorkel, or just cruising on the open water for fun, you need to equip your vessel with the finest products to make sure nothing ruins your amazing recreational time. With our website you are covered from bow to stern, because we know exactly what you need to make your boating a breeze. This product will be great for all outdoor enthusiasts who enjoy traffic-free travel and wind in their hair. Made with durable materials, it will ensure a long-lasting performance for many exciting adventures to come.
When it comes to safety on the board, nothing can beat Maretron®! Committed to making every journey a safe and secure experience, Maretron sets world-class standards in vessel monitoring and control systems. The company combines leading-edge technology, superior engineering and maximum accuracy to create state-of-the-art marine electronics that’s among the best worldwide. From gateways, fuel flow monitors, electrical monitoring and control products to navigation instruments and various cables and connectors, Maretron has you covered with everything you need for simpler, safer and more secure boating. Built with quality and reliability at their core and rigorously tested, top of the line Maretron products withstand the harshest marine conditions. Get the highest level of safety while on the water with Maretron products!
